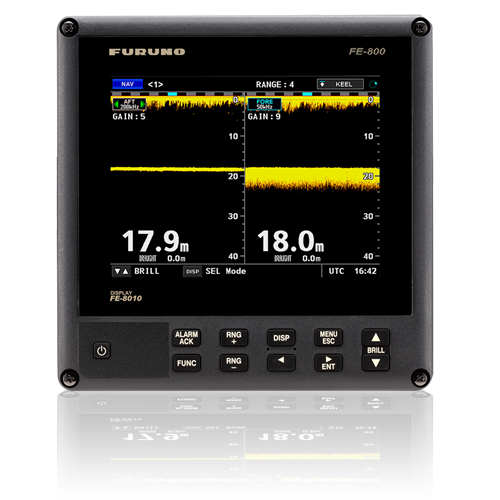

Furuno FE800 Sounder

FE800 Navigation Echo Sounder:

• 8.4" color VGA LCD display (640x480 resolution)
• Simultaneous display of 50 and 200 kHz frequencies, 1 kW RMS power
• Compatible with 50B6B and 200B8B transducers, junction box, and Matching Boxes MB502 and MB504 (same as FE700)
• 2 IEC-61162-1 input ports and 4 IEC-61162-1 output ports + 1 dry contact output + 1 LAN port (IEC61162-450)
• Internal memory stores data for up to 24 hours. Playback possible via computer (not included)
• Compliant with new IMO MSC.302(87) regulations regarding Bridge Alert Management (BAM)
• Power supply: 100–230 Vac, single-phase, 50/60Hz
• Wheelmark approved (including optional RD20 / RD50 repeater displays)
• Optional mounting bracket
• Multiple display modes: Geographic data (when connected to GPS), logbook, history, and alert log
• Printer connection available for echo printouts
